Cov txheej txheem ntawm profile
Tso lus
Printed Circuit Board yog cov khoom siv yooj yim tshaj plaws hauv cov khoom siv hluav taws xob, uas yog siv los kho thiab txuas ntau yam khoom siv hluav taws xob, ua kom tiav cov kev sib kis thiab kev tswj cov teeb liab hluav taws xob. Kev ua haujlwm ntawm qhov pom ntawm lub rooj tsav xwm hauv Circuit Court yog txheej txheem ntawm kev ua cov ntawv luam tawm ntawm lub rooj tsavxwm ntawm kev ua haujlwm loj rau hauv lub rooj tsavxwm ntawm cov neeg siv khoom xav tau loj, kom lub pcb tuaj yeem hloov kho kom zoo dua rau qhov loj me ntawm ntau yam khoom siv sab nraud.
1.Lub hom phiaj ntawm cov txheej txheem profile
Ntawm lub rooj tsavxwm luam ntawv tiav, txheej txheem thiab tsim lub rooj tsavxwm raws li tus neeg siv khoom xav tau. Nyob rau tib lub sijhawm, nws yog ib qho tsim nyog los xyuas kom meej qhov zoo ntawm lub rooj tsavxwm thaum lub sij hawm ua cov txheej txheem kom tsis txhob muaj kev ua yuam kev thiab qhov tsis xws luag, txhawm rau ua kom muaj kev ruaj ntseg thiab kev ntseeg siab ntawm cov ntawv luam tawm Circuit Board.
2.Lub hauv paus ntsiab lus ntawm profileing board
Muaj lub tshuab computer CNC uas tswj cov kev txav ntawm lub tshuab thiab tsim cov duab uas tus neeg siv khoom xav tau raws li cov ntaub ntawv nkag ntawm lub computer. Nyob rau hauv cov nqe lus ntawm kev tswj, muaj X-axis, Y-axis, thiab Z-axis coordinates. Lub khoos phis tawj tswj kev txav ntawm XY axis ntawm lub tshuab thiab cov gongs uas tau tsav los ntawm Z-axis gongs. Los ntawm inputting gongs thiab tsis tsim nyog, lub tshuab yuav cia li tsim cov yam xav tau raws li cov ntaub ntawv.
3.Kev ceev faj rau kev ua haujlwm
① Thaum lub sijhawm ua haujlwm, nws yuav tsum nruj me ntsis ua raws li cov qauv tsim khoom thiab cov qauv, thiab teeb tsa thiab kho raws li kev ua haujlwm sib txawv.
② Cov neeg ua haujlwm yuav tsum tau txais kev cob qhia txaus thiab kev kawm txuj ci, kev paub txog kev ua haujlwm thiab kev ua haujlwm, thiab ua haujlwm tu cov cuab yeej tsis tu ncua.
③ Thaum lub sij hawm tus txheej txheem, nws yog ib qho tsim nyog yuav tsum tau ua tag nrho cov kev soj ntsuam thiab kev tswj kom zoo, tam sim ntawd ntes thiab tuav cov khoom puas, thiab ua tib zoo kho thiab txhim kho cov khoom.
Kev ua cov txheej txheem ntawm cov ntawv luam tawm Circuit Board yog qhov txuas tseem ceeb hauv kev ua kom cov khoom zoo thiab tawm los, thiab muaj qhov tseem ceeb thiab muaj txiaj ntsig. Hauv cov txheej txheem, kev tshawb fawb, kev tsim qauv, thiab kev ua haujlwm zoo thiab kev tswj hwm yuav tsum ua kom tiav peb yam ntawm kev ua haujlwm: "txo kev ua yuam kev, tiv thaiv kev ua yuam kev, thiab kev txhim kho kom zoo", txhawm rau ua tiav cov txiaj ntsig zoo dua thiab cov txiaj ntsig zoo.

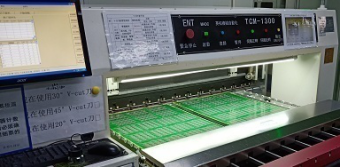

Duab: V-Cut

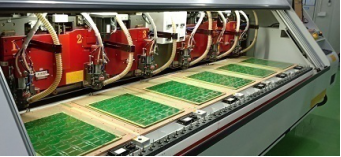

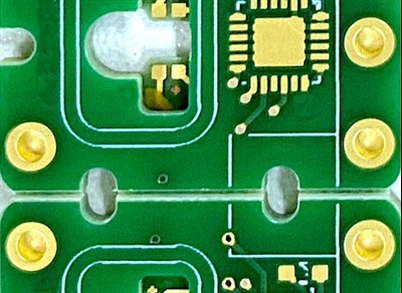

Duab: Routing

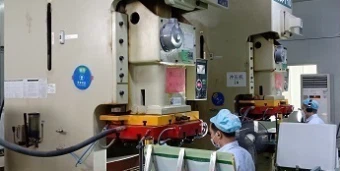

Duab: Punching
Qhov txawv ntawm V-txiav thiabrouter
V-txiav yog txiav V-puab ncaj ncaj zawj ntawm ob sab ntawm lub rooj tsav xwm luam tawm uas nws yuav tsum tau muab faib. Lub npe hu ua 'V-cut' yog ib hom kev faib kab ua los ntawm cov chaw tsim khoom siv hluav taws xob (PCB) raws li tus neeg siv khoom xav tau, siv lub tshuab txiav los txiav cov haujlwm tshwj xeeb ntawm PCB ua ntej. Nws lub hom phiaj yog los pab txhawb cov tom ntej 'De vaj huam sib luag' ntawm SMT luam tawm Circuit Board tom qab sib dhos. Vim hais tias qhov kev txiav zoo li cov lus Askiv 'V', cov neeg hu nws V-cut.
Qhov zoo:Cov khoom siv uas xav tau yog qhov yooj yim, nrawm, thiab siv tau zoo.
Qhov tsis zoo:Tsuas yog cov square panels tuaj yeem ua tiav, thiab ntau lub vaj huam sib luag tsis tuaj yeem ua tiav ib txhij. Muaj cov kev cai nruj nruj rau qhov tob ntawm V-groove, thiab qhov tseeb qhov tseeb ntawm V-txiav vaj huam sib luag yog tsawg. Kev sib txuas interface yog ntxhib tom qab splicing thiab splitting.
Routing yog txheej txheem ntawm kev siv lub tshuab CNC los tsim cov qauv ua ntej ntawm lub rooj tsavxwm luam tawm uas siv lub tshuab txiav milling raws li qhov kev pab cuam ua ntej.
Qhov zoo: Ntau cov duab vaj huam sib luag tuaj yeem tsim rau ntawm lub rooj tsavxwm raws li qhov kev zov me nyuam, thiab ob peb lub rooj tsavxwm tuaj yeem sib tshooj thiab ua tiav ib txhij. Kev tsim qhov loj ntawm lub vaj huam sib luag yog siab, thiab lub interface ntawm lub vaj huam sib luag yog du.
