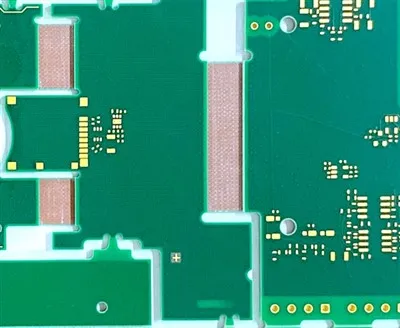

Rigid-flex Board rau Industrial Control

Rigid-flex board rau kev tswj hwm kev lag luam yog lub rooj tsav xwm luam tawm uas sib xyaw ua ke ntawm cov boards hloov tau yooj yim thiab nruj. Nws muab cov txiaj ntsig zoo ntawm cov boards hloov tau yooj yim thiab nruj kom ua tiav cov kev tswj tau yooj yim dua, ua haujlwm tau zoo, thiab txhim khu kev qha.

Cov khoom lag luam tswj kev lag luam xa mus rau ntau yam khoom siv hluav taws xob siv hauv kev lag luam tswj kev lag luam, ntawm cov khoom siv tseem ceeb tshwj xeeb yog cov ntawv luam tawm Circuit Board. Cov ntawv luam tawm Circuit Board yog cov nqa khoom uas txhawb nqa cov khoom siv hluav taws xob, thiab lawv qhov zoo yog qhov tseem ceeb rau kev ua haujlwm thiab kev ntseeg siab ntawm tag nrho cov khoom lag luam tswj.

1. Kev ntseeg siab

Kev tswj cov khoom lag luam yuav tsum muaj kev ntseeg siab vim lawv ua haujlwm hauv cov chaw tsim khoom lag luam thiab tiv taus qhov chaw ua haujlwm nyuaj. Yog li ntawd, cov ntawv luam tawm Circuit Board yuav tsum muaj cov txheej txheem tsim khoom zoo thiab raug kuaj nruj thiab tswj xyuas kom ntseeg tau tias lawv muaj kev ntseeg siab thiab ua haujlwm ntev.

2.Multi-layer tsim

Tam sim no, kev sib txuas ntawm cov khoom lag luam tswj kev lag luam tau nce ntxiv, vim tias daim ntawv thov ntawm cov chips sib xyaw ua ke tau nce zuj zus, uas ua rau muaj kev siv ntau txheej luam tawm Circuit Board. Multi-layer circuit boards tuaj yeem muab cov teeb liab sib kis ceev dua thiab zoo dua teeb liab kev ncaj ncees, txhim kho kev ua haujlwm ntawm tag nrho cov khoom lag luam tswj.

3.High ceev layout

Hauv kev tswj cov khoom lag luam, qhov chaw ntawm PCB feem ntau txwv tsis pub vim lawv yuav tsum tau mloog zoo rau cov khoom siv hluav taws xob ntau hauv qhov chaw me me. Yog li ntawd, high-density layout yog tsim nyog. High density layout yuav tsum tau CAD (Computer-aided design) technology thiab kev tsim cov txheej txheem kom ua tiav cov qauv tsim thiab kev tsim cov khoom siv hluav taws xob zoo, thaum ua kom muaj kev nyab xeeb thiab ruaj khov ntawm cov ntawv luam tawm Circuit Board.

4.High ceev kis tshuab

Nrog rau kev tsim cov khoom lag luam tswj kev lag luam, cov kev xav tau rau kev tswj xyuas ntse thiab kev sib txuas lus tau nce siab. Yog li ntawd, high-speed kis technology yog dav siv nyob rau hauv cov khoom siv no. Qhov no yuav tsum tau lub pcb muab siab dua Circuit Court kis ceev thiab cov ntaub ntawv bandwidth, txhim kho tag nrho cov kev ua tau zoo ntawm lub cuab yeej.

Tus tsim ntawm pcb yuav tsum muaj peev xwm tiv thaiv kev cuam tshuam zoo. Hauv cov chaw tsim khoom lag luam, muaj ntau qhov cuam tshuam, xws li hluav taws xob hluav taws xob, hluav taws xob cuam tshuam, kev hloov pauv kub, thiab lwm yam. Yog tias cov ntawv luam tawm Circuit Board tsis muaj kev cuam tshuam zoo, nws yuav ua rau cov teeb meem tsis tsim nyog thiab poob rau cov txheej txheem ntau lawm.

Lub pcb yuav tsum muaj lub zog ruaj khov. Nyob rau hauv qhov chaw tsim khoom, vim qhov tshwj xeeb ntawm qhov chaw tsim khoom, qee qhov khoom siv kho vajtse feem ntau raug kev puas tsuaj ntau yam, uas cuam tshuam rau kev ruaj ntseg ntawm cov khoom siv ua haujlwm. Raws li ib qho ntawm nws cov khoom tseem ceeb, cov ntawv luam tawm hauv Circuit Court yuav tsum muaj cov khoom zoo xws li lub zog hardness, seismic durability, thiab tsis kam mus hlawv kom tiv taus qhov cuam tshuam loj thiab kev co.

Rigid-flex board rau kev lag luam tswj kev sib txuas ua ke qhov zoo ntawm ob qho tib si saj zawg zog thiab rigid boards, integrating kev ntseeg tau thiab saj zawg zog, ua rau nws ib tug luam Circuit Court board nrog ntau yam zoo. Txij li thaum tsim ntawm Rigid-flex Board Division ntawm Sihui Fuji, peb tau tsis tu ncua kov yeej ntau yam kev nyuaj, yuav cov khoom siv siab heev thiab cov kab ntau lawm, thiab kev cob qhia cov txuj ci. Peb tam sim no muaj peev xwm los tsim ntau hom rigid-flex board. Yog tias koj tseem muaj kev xav tau rau rigid-flex board, thov hu rau peb.

Specification ntawm cov qauv board

Yam khoom: Rigid-flex board rau kev lag luam tswj

Txheej: 10

Khoom siv: S1000-2M+IF-2LD5018NJ2

Board thickness: 1.25 ± {2}}.15 hli (nruj ntu), {{0}}.16 ± 0.05mm(hloov tau ib feem)

Cim npe nrov: Tuam Tshoj rigid-flex board rau industrial tswj manufacturers, lwm tus neeg, Hoobkas
